DLX Method IDOL Bolt Kit

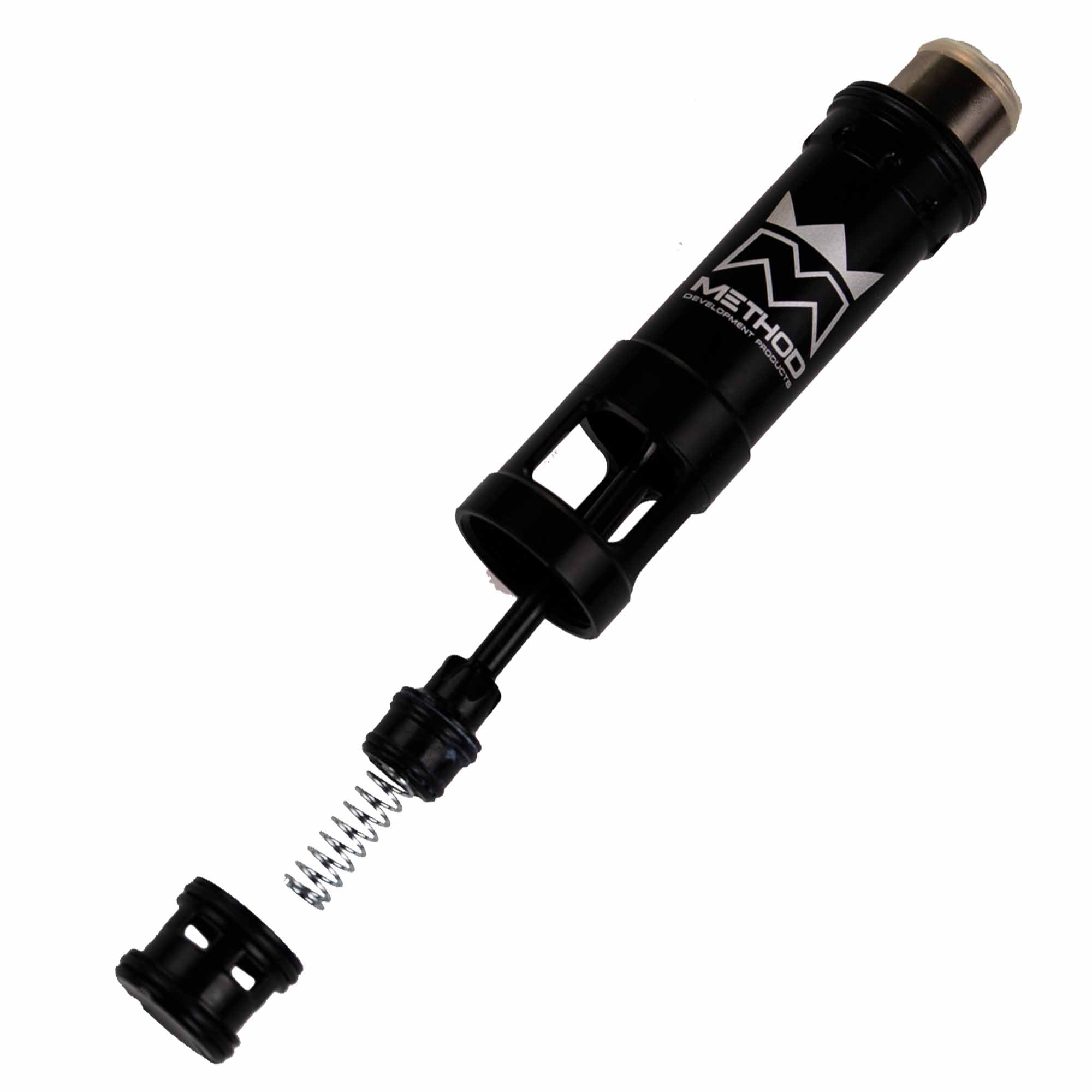

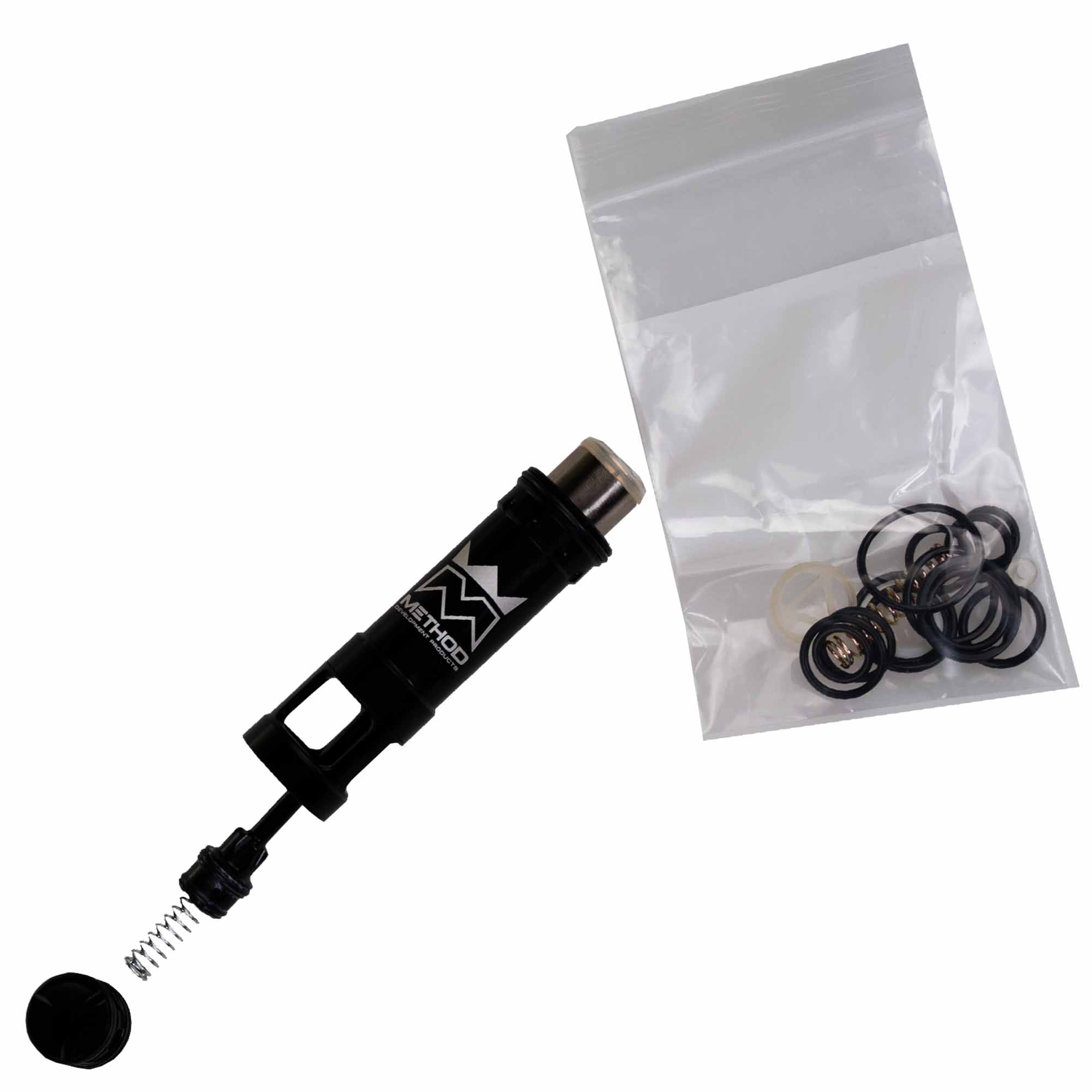

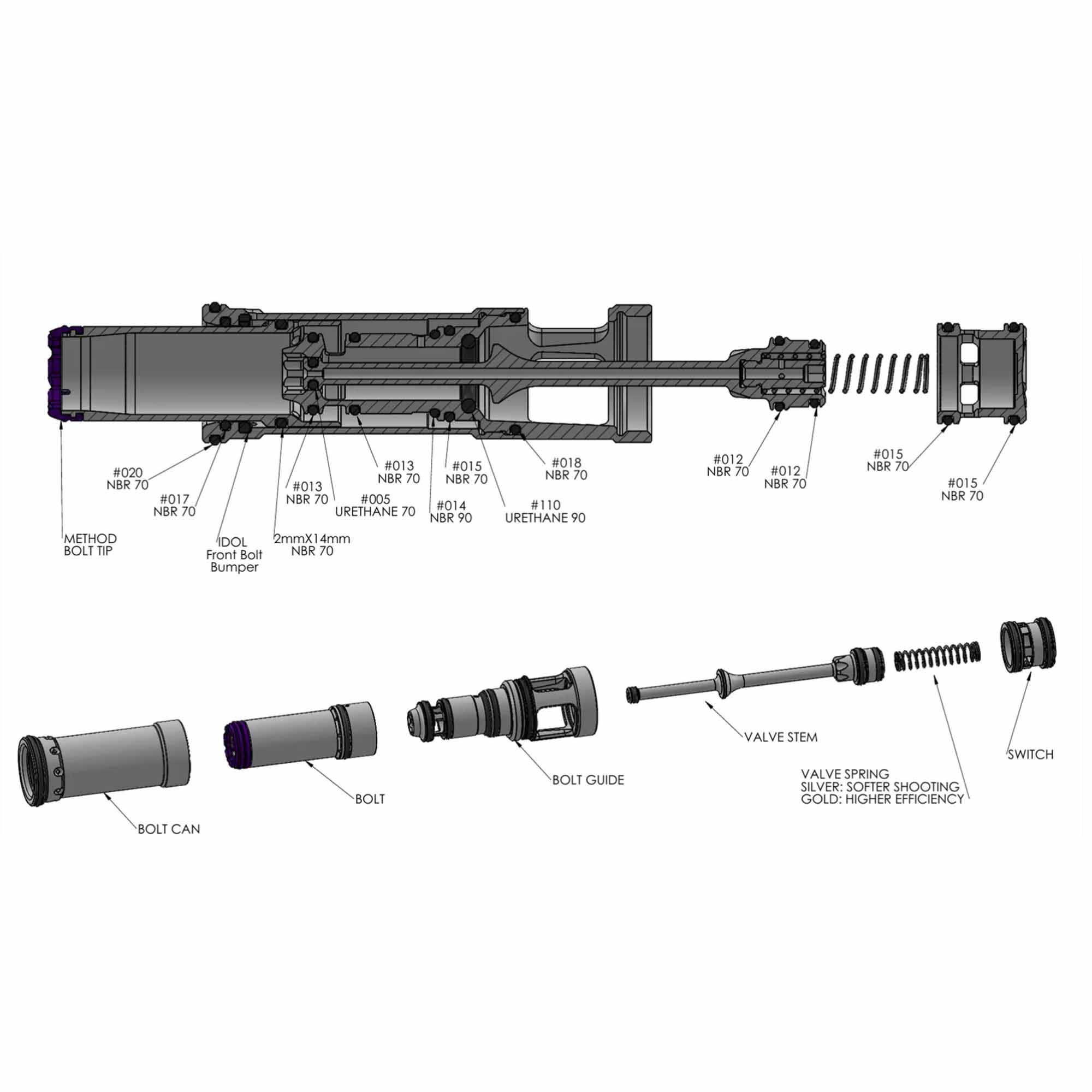

The IDOL Method Bolt Kit has been completely redesigned and consists of a new bolt tip, bolt guide, bolt center section, a new valve stem, valve switch and two different valve springs.

Features:

The bolt tip has been replaced with Method's proven Soft Tip, which reduces restrictions within the bolt.

The number of components has been reduced by combining the rear bolt section and the bolt guide, which contributes to easier maintenance.

The pin guide and pin have been redesigned to provide smoother acceleration and air cushioned braking. This results in smoother paint handling and less mechanical kickback.

The main valve seal has been relocated from the valve stem to the pin guide. This allows a larger, more reliable, static valve seal to be used. This improves reliability and air flow.

Supplied with two different valve springs. Gold for those who want higher efficiency and silver for those who want a softer stop.

Assembly:

Pull the standard idol bolt out of the body.

Remove the standard valve switch and the valve spring from the rear housing

Lightly grease the new valve switch and install it in the rear housing with the cavity facing you.

Install the valve spring on the valve stem. Apply light pressure to the spring guide in the valve stem. This holds the spring in the valve stem so that it does not fall out during maintenance. .

Ensure that the entire bolt is well lubricated and insert it into the body.

ATTENTION,

If the Method Bolt cannot be screwed onto the rear housing (LUX626.1), please do not use force and cancel the assembly. Please contact us so that we can help you. Thank you.
